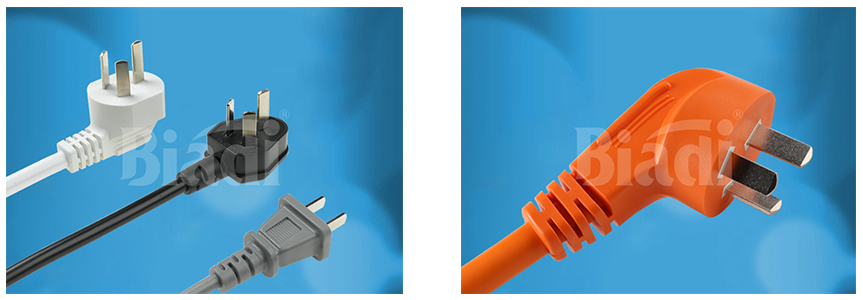

AC電源插頭線

技術數據

電纜結構

應用



認證標準插頭形狀額定電流/電壓產品型號產品規格導體條數導體 直徑平均外形尺寸mm
Nmm下限上限
CCC認證二扁頭,中二扁頭,煙斗頭,長城頭,大煙斗頭10A/250V60227 IEC 52(RVV)2×0.5(扁)280.150 3.0*4.93.7*5.9
CCC認證二扁頭,中二扁頭,煙斗頭,長城頭,大煙斗頭10A/250V60227 IEC 52(RVV)2×0.5280.150 4.60 5.90
CCC認證二扁頭,中二扁頭,煙斗頭,長城頭,大煙斗頭10A/250V60227 IEC 53(RVV)2×0.75420.150 5.70 7.20
CCC認證二扁頭,中二扁頭,煙斗頭,長城頭,大煙斗頭10A/250V60227 IEC 53(RVV)3×0.75420.150 6.00 7.60
CCC認證二扁頭,中二扁頭,煙斗頭,長城頭,大煙斗頭10A/250V60227 IEC 53(RVV)3×0.75+圓環420.150 6.00 7.60
CCC認證二扁頭,中二扁頭,煙斗頭,長城頭,大煙斗頭10A/250V60227 IEC 53(RVV)3×1.0320.200 6.30 8.00
CCC認證二扁頭,中二扁頭,煙斗頭,長城頭,大煙斗頭10A/250V60227 IEC 53(RVV)3×1.5480.200 7.40 9.40
VDE認證法國頭16A/250VH03VV-F3×0.75420.150 5.20 6.70
VDE認證法國頭16A/250VH05VV-F3×0.75420.150 6.00 7.60
VDE認證法國頭16A/250VH05VV-F3×1.0320.200 6.30 8.00
VDE認證法國頭16A/250VH05VV-F3×1.5480.200 7.40 9.40
